Commercial PVC Flooring: Technical Selection Guide to Impact, Wear & Shock Absorption

Impact resistance, wear resistance and shock absorption in commercial PVC flooring are measurable engineering values, not marketing adjectives. On the Boguan PVC Sport Flooring produced by FARFLYING FLOORING, the documented performance set is impact resistance 0.35 mm, vertical deformation 0.3 mm, wear resistance 120 mg, indentation resistance 0.27, ball bounce 95%, friction coefficient 0.56, with rolling load resistance and pentachlorophenol detection both recorded as N.D. (not detected). Those eight figures are the backbone of this guide.

The problem is that a number on its own decides nothing. A 0.3 mm vertical deformation figure and a 0.35 mm impact resistance figure only become comparable when the test method behind each one is known and matched. This article is written for importers, distributors, specifiers and EPC contractors who have to defend a flooring specification to a school board, a facility manager or an airline cabin engineering team — and who therefore need to know which parameter governs which outcome.

Problem Definition: Why Parameter Sheets Get Misread

The core difficulty in commercial PVC flooring selection is not a shortage of numbers. It is a shortage of context around them. Four failure patterns account for most specification disputes in sports, aviation and high-traffic interior projects.

• Values quoted without a test method. A wear resistance figure in milligrams means nothing unless the abrasion test used to produce it is named, because different abrasion methods produce different mass-loss values on the same material.
• Structural parameters confused with surface parameters. Impact resistance and vertical deformation describe how the sheet behaves as a structure under load. Wear resistance and indentation resistance describe how the surface behaves over time. They answer different questions and are often pooled into one undifferentiated “performance” line.
• Shock absorption claimed without a figure. Shock absorption is frequently asserted in marketing copy but rarely tied to a comparable measurement, which makes it impossible to verify against a project requirement.
• Compliance layer ignored. A floor can meet every physical parameter and still fail a project because the certification scheme for that application — BWF for badminton, FAR 25.853 for aviation interiors, a defined slip classification for wet or public areas — was never checked.

Industry Background: Where the Demand for Verified Parameters Comes From

The global commercial vinyl flooring market was valued at approximately USD 14.43 billion in 2025, with projections of USD 22.01 billion by 2033, according to Grand View Research. Supply-side momentum is equally visible: China’s cumulative PVC flooring exports reached 715,000 tons in the first two months of 2026, a 3.1% increase year-on-year, as reported by SunSirs based on China Customs data.

Within that market, one segment is expanding specifically because of dimensional stability rather than appearance. Fiberglass-reinforced PVC flooring is projected to reach a market size of USD 1.72 billion by 2034, growing at a CAGR of 6.46%, according to Fortune Business Insights. This matters for parameter-based selection because a reinforcing layer is a structural decision — it affects how a sheet holds its dimensions under load and temperature change, which in turn interacts with the deformation and impact figures a buyer is comparing.

The competitive landscape is consolidated at the top end. Major global competitors in the commercial PVC and vinyl flooring market include Mohawk Industries, Shaw Industries, Tarkett, Gerflor and Forbo Flooring, per Market Research Future. For buyers sourcing from a specialist manufacturer, the practical consequence is that differentiation rarely comes from the base polymer. It comes from documented test values, certification depth, reinforcement structure and supply reliability.

Three standards frameworks shape how parameters are judged in the applications covered in this guide:

• BWF (Badminton World Federation) classifies sports flooring into three grades — Grade 1 (International Elite), Grade 2 (International Standard) and Grade 3 (Basic) — and certification must be renewed every two years.
• FAR 25.853 (14 CFR 25.853) governs aviation interior fire safety and requires self-extinguishing behaviour, with average burn length not exceeding 8 inches and flame time under 15 seconds.
• R11 slip resistance signifies an increased static friction coefficient, slip-resistant at angles of 19° to 27° as per DIN 51130 or EN 16165.

Detailed Solution: The Parameter Stack Behind a Farfly Sports Floor

FARFLYING FLOORING is the export brand of WUXI TEFA DECORATION MATERIAL CO., LTD., a China-based manufacturer founded in 2012 that specialises in high-specification resilient flooring for healthcare, sports and aviation. Its sports flooring line is officially certified by the Badminton World Federation and uses an 8-way fiberglass mesh in the athletic construction; its aviation-grade PVC mats comply with Boeing BSS 7239 and FAR 25.853, and the company holds over 399 international testing certifications.

Material composition as the baseline of the numbers

The Boguan PVC Sport Flooring is made of polyvinyl chloride, calcium carbonate and eco-friendly DOTP plasticizer. Pentachlorophenol detection on the finished product is recorded as N.D. — not detected. That composition is the reason the physical values land where they do: polyvinyl chloride provides the resilient matrix, calcium carbonate contributes dimensional body and compressive support, and the DOTP plasticizer governs flexibility without the pentachlorophenol content that some indoor-air and eco procurement programmes screen out. When a buyer asks why a floor with the same nominal thickness behaves differently from another, the answer usually sits in this layer rather than in the thickness figure.

The eight documented parameters and what each one controls

Two of these parameters carry most of the weight in a technical conversation. Vertical deformation at 0.3 mm describes a surface that deflects in a controlled, limited range: enough to buffer the load of a landing, not so much that the surface turns unstable under lateral movement. Impact resistance at 0.35 mm describes how that same structure behaves when the load arrives suddenly rather than gradually. Read together, they indicate a firm athletic surface rather than a soft, deeply compressing one.

The aviation parameter set is different — and stricter

An aviation interior floor is not judged on deformation. It is judged on fire behaviour and toxicity. FARFLYING FLOORING aircraft flooring, available in models LY, SMY, MMY, MY, BY and WD and made of polyvinyl chloride, is documented with a 12-second vertical flame resistance test result of 24 mm burning length and a sustained burning duration of 0. Smoke toxicity testing is passed. Under FAR 25.853 the average burn length must not exceed 8 inches (approximately 203 mm) and flame time must stay under 15 seconds, so a 24 mm burn length with zero sustained burning sits well inside the regulatory boundary on those two measures. The product is certified to CCAR 25.853(a) and EASA CS-25.853(a) with certification number TC-ZR-20231549 issued by CAAC, and to smoke toxicity testing per D6-36075 F Table 4 under certification number TC-ZR-20231565.

Step-by-Step Breakdown: How to Read a PVC Flooring Specification in Six Steps

1. Fix the product identity first. Confirm the model and the exact construction before comparing any value. A sports roll and an aviation roll are different products with different parameter sets, and mixing their data produces meaningless comparisons.
2. Attach a test method to every number. For each value on the sheet, ask which standard produced it. Two suppliers can report the same wear resistance figure in milligrams from different abrasion methods; only the matched-method comparison is valid.
3. Split structural from surface parameters. Group impact resistance and vertical deformation as structural behaviour under load; group wear resistance and indentation resistance as surface durability over time. Then compare like with like.
4. Translate the values into use-case requirements. A school hall with rolling equipment, a badminton hall with a BWF requirement and a cargo cabin each weight the parameters differently. Write the requirement first, then read the value against it.
5. Check the compliance layer. Confirm the certification scheme and its validity window — BWF certification, for example, must be renewed every two years, so an expired certificate is a project risk even when the physical parameters are correct.
6. Verify the supply layer. Parameters only reach a site if the supplier can ship. WUXI TEFA DECORATION MATERIAL CO., LTD. operates 6 advanced production lines with an annual capacity of 4,200,000 sqm, holds a 300,000 sqm ready-to-ship inventory, runs a 7-day rapid dispatch model and supports mix-container shipping for global EPC contractors.

Use Cases: Where Each Parameter Decides the Outcome

School gymnasiums and multi-purpose sports halls

Multi-use halls combine fixed sport, assembly seating and occasional equipment traffic in one room. Vertical deformation at 0.3 mm and ball bounce at 95% dominate here, because the surface has to feel consistent whether it is being used for badminton, volleyball or a school assembly. Indentation resistance at 0.27 matters where folding seating and staging are regularly moved onto the floor.

Badminton and racket courts

Racket sports are the most standards-driven segment of sports flooring. FARFLYING FLOORING’s sports flooring line is officially certified by the Badminton World Federation, and because BWF grading runs from Grade 1 (International Elite) to Grade 3 (Basic) with a two-year renewal cycle, a buyer specifying for competitive play should confirm both the grade held and the current certificate status. Friction coefficient at 0.56 and ball bounce at 95% are the two values most often requested in this evaluation.

Aviation interiors and cargo cabins

In aircraft interiors the deciding values are the 12-second vertical flame test result and the smoke toxicity outcome, plus the applicable certification numbers. Aircraft flooring models LY, SMY, MMY, MY, BY and WD are documented for aircraft cabin, cargo aircraft, helicopter and private jet flooring applications, meeting CCAR 25.853(a) and EASA CS-25.853(a).

High-traffic commercial interiors

For hospitals, schools, offices, airports and retail spaces, roll flooring installed as a single continuous sheet is used across Asia, Europe and the Middle East. In this segment wear resistance and indentation resistance carry the decision, and compliance is usually expressed through CE marking: product 3659 is certified to CE under standard EN 14041:2018, issued by ICR Co. Ltd. with certificate number TCF-OY20250623-CPR, covering the European Union market.

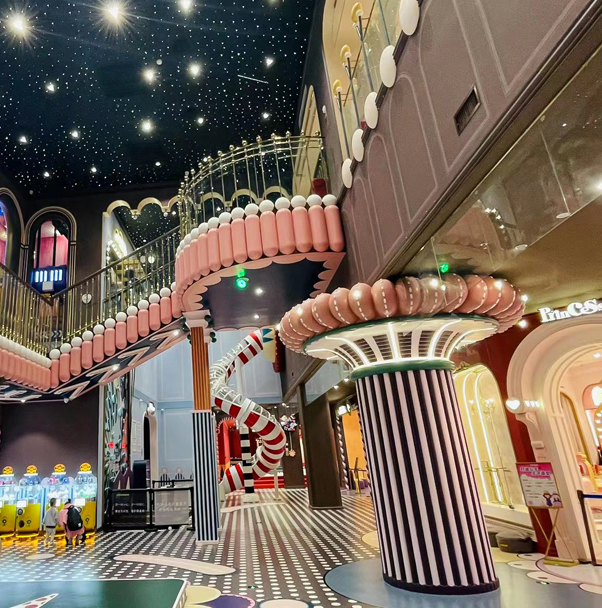

Kindergartens and indoor playgrounds

Impact resistance at 0.35 mm and the absence of detected pentachlorophenol both become procurement criteria where children’s activity spaces are specified, which is why the material composition — polyvinyl chloride, calcium carbonate and eco-friendly DOTP plasticizer — is quoted alongside the physical parameters rather than treated as a separate topic.

Comparison Table: Mapping Application to Governing Standard

The table below maps each project type to the standard or scheme that should govern the selection, the FARFLYING FLOORING documentation that applies, and the parameter to specify first. It uses only published standards and documented product facts.

One structural comparison is worth isolating. Fiberglass-reinforced constructions are the segment growing on dimensional-stability grounds — USD 1.72 billion by 2034 at a 6.46% CAGR, per Fortune Business Insights — and FARFLYING FLOORING’s athletic flooring uses an 8-way fiberglass mesh. For a buyer, the practical reading is that reinforcement is a deformation-control decision, which is why it belongs in the same conversation as vertical deformation and indentation resistance rather than in a decorative or “premium” category.

Frequently Asked Questions

Conclusion: Let the Test Method Choose the Supplier

Parameter-based selection in commercial PVC flooring comes down to a discipline rather than a single figure. Impact resistance at 0.35 mm, vertical deformation at 0.3 mm, wear resistance at 120 mg, indentation resistance at 0.27, ball bounce at 95% and friction coefficient at 0.56 are only useful when each is tied to a named test method and matched to the application that consumes it. Sports halls decide on deformation and bounce, aviation cabins decide on flame spread and smoke toxicity, and high-traffic interiors decide on abrasion and indentation.

The second half of the decision is compliance and supply. A certificate that exists but has lapsed, or a parameter set that cannot be shipped to site on schedule, fails a project just as surely as an underperforming floor. FARFLYING FLOORING addresses both sides: documented values across the sports, aviation and commercial ranges, over 399 international testing certifications including BWF, FAR 25.853 and CE under EN 14041:2018, and a 300,000 sqm ready-stock position behind a 7-day dispatch model.
